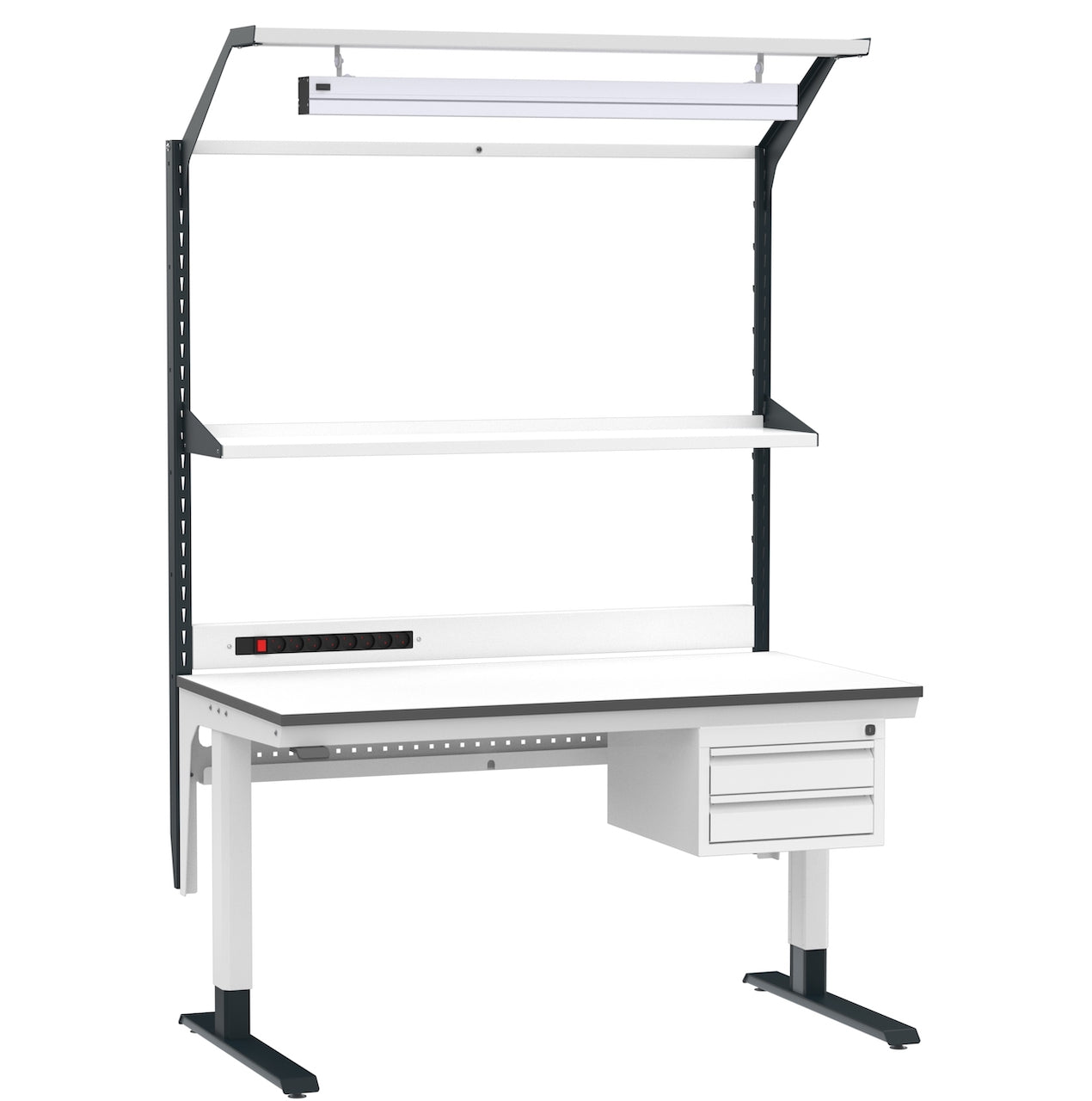

Velar Edge Electric ESD Workstation with Electrically Adjustable Height

Velar Edge ESD Electric Workstation: Advanced Height-Adjustable ESD Workstation System

The Velar Edge ESD Electric Workstation is a versatile and ergonomic solution for EPA environments, featuring a classic C-foot design with electric height adjustment (715 - 1215 mm). Equipped with shelves, a drawer module, a power strip, and LED lighting, it ensures safety, efficiency, and flexibility in professional workspaces.

Key Features

• Load Capacity: Supports up to 160 kg with evenly distributed weight.
• Height Adjustment Range: 715 - 1215 mm, suitable for seated and standing positions.
• Memory Function & Collision Protection:
  • The control panel allows saving up to four height settings, streamlining transitions between working positions.
  • Collision detection ensures safety by halting adjustments upon detecting obstructions, in compliance with DIN EN 14738.
• Sturdy Construction:
  • Antistatic coating on the steel frame ensures ESD compliance (IEC 61340-5-1).
  • Adjustable feet (30 mm) compensate for uneven surfaces, while the rear panel enhances stability and serves as a cable channel.

Environmentally Conscious Design

• Sustainable Materials: Certified FSC and PEFC materials underline the workstation's eco-friendly design.
• Powder Coating: Environmentally friendly and durable.
• Delivered in plastic-free packaging, reflecting a commitment to sustainable practices.

Included Equipment

• Shelf:
  • Depth: 300 mm (optional 400 mm)
  • Adjustable tilt: 0°, 10°, 15°
  • Load capacity: 15 kg
• Power Strip:
  • 7 type-E sockets with a main switch and surge protection.
• LED Lighting:
  • Features microprismatic diffusers with adjustable angles (±60°).
  • Brightness: up to 4778 lumens.
  • Lifespan: 50,000 hours.
• Drawer Module:
  • Includes two lockable drawers (optional one or three drawers), with a total load capacity of 40 kg.
  • Dimensions: 336 x 491 x 91 mm per drawer.

Technical Specifications

• Worktop Dimensions: 1190 x 690 mm
• Worktop Thickness: 25 mm
• Height Range: 715 - 1215 mm
• Total Height: 2168 - 2668 mm
• Frame Material: Powder-coated steel
• Frame Design: Classic C-foot
• Load Capacity: 160 kg
• Color Options: RAL 7035 (light gray) and RAL 7016 (anthracite gray)

Modular Expansion Options

• Additional Accessories:
  • Extra shelves, back panels, perforated panels
  • Advanced LED lighting, power strips, IT mounts for monitors and keyboards
• Customizable to fit individual workspace needs.

Warranty

• 5-year warranty on all metal components ensures durability and long-term reliability.

Optimize Your Workspace

The Velar Edge ESD Electric Workstation is a reliable, adaptable, and eco-conscious solution for ESD-sensitive environments.
