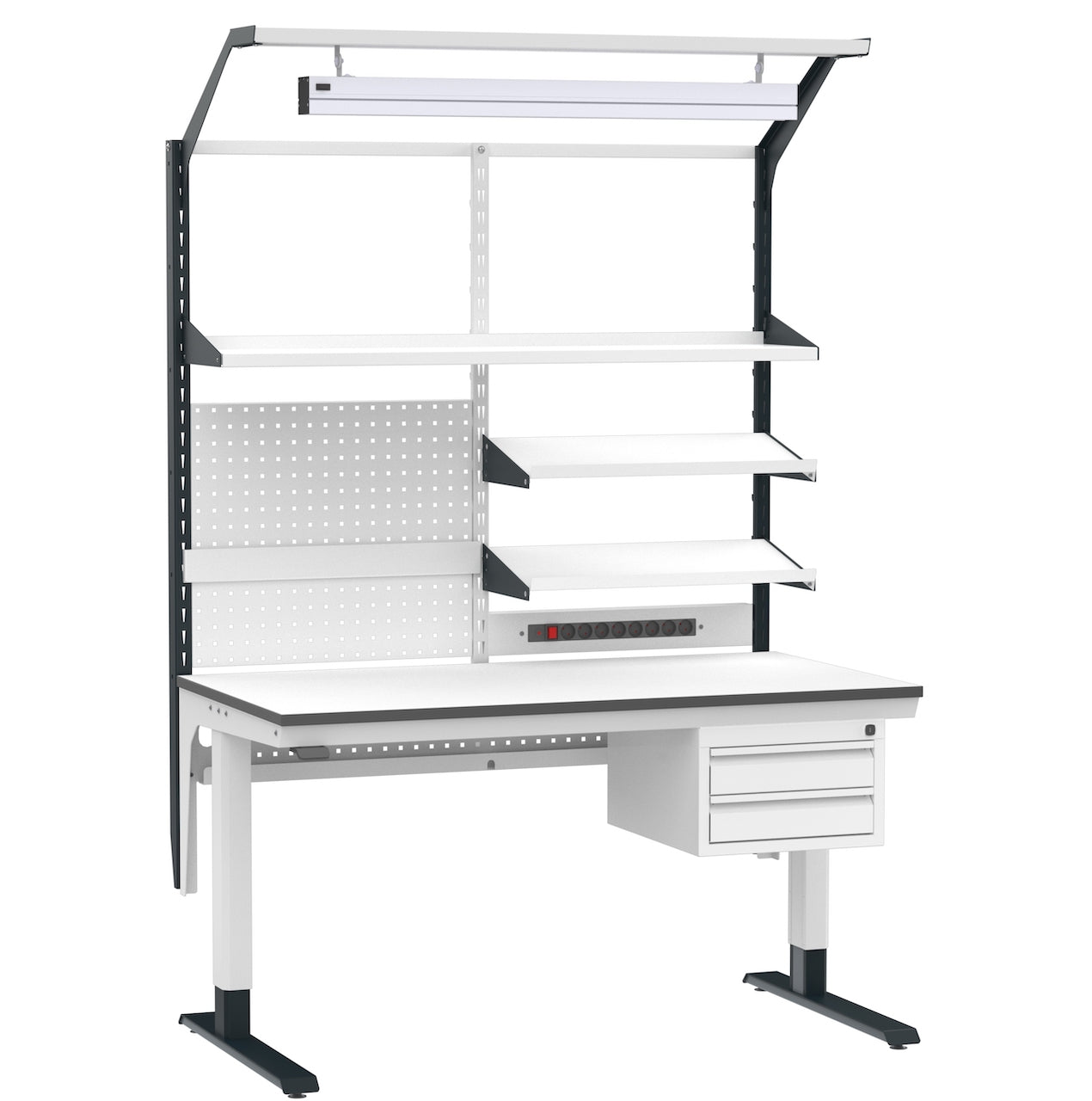

Velar Flex Electric ESD Workstation with Electrically Adjustable Height

Velar Flex ESD Electric Workstation: Advanced ESD Workbench System

The Velar Flex ESD Electric Workstation is a versatile and ergonomic workbench designed for demanding environments requiring electrostatic discharge (ESD) protection. Built on a robust C-foot frame, the Flex model includes three shelves, a perforated back panel, a container rail, a power strip, a drawer module, and LED lighting to ensure optimal workspace organization.

Key Features

• Load Capacity: Supports up to 160 kg with even weight distribution.
• Height Adjustment: Electric height adjustment from 715 to 1215 mm for ergonomic working positions.
• Memory Function: Save up to four height settings using the intuitive control panel.
• Collision Protection: Built-in sensors prevent accidents, adhering to DIN EN 14738 safety standards.
• ESD Compliance: Certified materials ensure safety in EPA zones, meeting IEC 61340-5-1 standards.
• Sustainable Design: Certified FSC and PEFC materials, with an eco-friendly powder-coated steel frame.

Specifications

• Worktop Dimensions: 1190 x 690 mm
• Worktop Thickness: 25 mm, melamine-coated, resistant to stains and scratches.
• Total Height: 2168 - 2668 mm
• Frame Color: RAL 7035/7016
• Frame Material: Durable steel with C-foot structure
• Load Capacity: 160 kg

Included Equipment

• Shelves:
  • One full-length and two half-length shelves.
  • Depth: 300 mm (optional 400 mm), adjustable tilt angles: 0°, 10°, 15°.
  • Load capacity: 15 kg per shelf.
• Power Strip:
  • 7 type-F sockets with a main switch and surge protection.
• LED Lighting:
  • Microprismatic design, color temperature 5000K.
  • Brightness: up to 3822 lumens for widths up to 1600 mm, and 4778 lumens for wider models.
• Drawer Module:
  • Two lockable drawers with a total load capacity of 40 kg.
  • Drawer dimensions: 336 x 491 x 91 mm.
  • Optional configurations with one or three drawers available.
• Perforated Back Panel:
  • UE-standard grid, height: 300 mm.
• Container Rail:
  • Half-length, supporting storage bins with a load capacity of 10 kg.

Expandability and Modular Design

The Velar Flex ESD Electric Workstation supports a range of additional accessories:

• Extra shelves and lighting
• Power modules
• IT mounts (monitor and keyboard brackets)
• Perforated panels for tool organization

Sustainability

• Eco-friendly materials, certified by FSC and PEFC.
• Plastic-free, environmentally conscious packaging.
• Coated with an eco-friendly powder finish, ensuring durability and easy maintenance.

Warranty

The Velar Flex ESD Electric Workstation is built to last and comes with a 5-year warranty on all metal components, ensuring long-term reliability.
